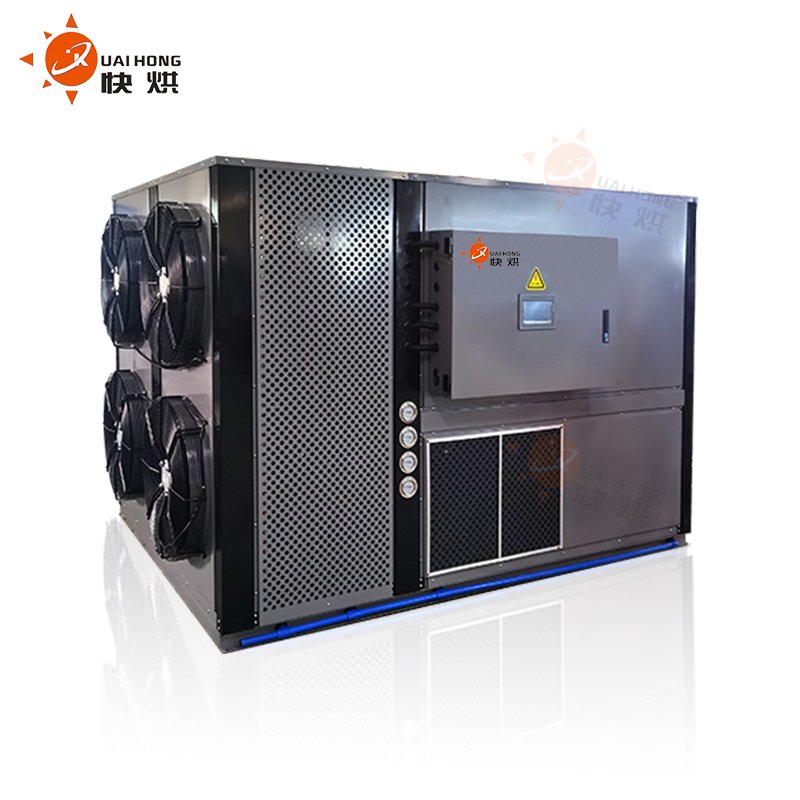

KHG20/30 Side-Discharge 360° Integrated Unit

KHG20/30 Side-Discharge 360° Integrated Unit

The machine features a built-in waste heat recovery system capable of reclaiming 70% of the heat during the drying and dehumidification process, effectively achieving energy conservation and emission reduction. It utilizes a fully automatic, intelligent control system with a 7-inch touchscreen interface, supporting 10-stage programming for time, temperature, humidity, and operating modes. Designed as an all-in-one unit, it offers easy installation, simple maintenance, and convenient relocation. The machine is suitable for drying applications involving food products, medicinal herbs, agricultural produce, and more.

Add to quote
Category:
Model Unit KHG03 KHG05 KHG06 KHG07 KHG10 KHG12 KHG15
Voltage / Frequency V/Hz 220V~380V/50Hz 220V~380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz 380V/50Hz
Rated Power kW 2.8 4.6 5.2 6 9.2 11.3 13.2
Rated Current A 5.5 9.2 10.8 13 18.5 22.5 28
Heating Capacity kW 11 18.5 22 26 36 45 48
Cooling Capacity kW 7.9 15.5 19 24 26 35 38
Dehumidification Capacity L/H 10.5 17.5 21 24.5 35 42 52.5
Max. Power Input kW 3.5 5.5 6.6 7.2 11.2 13.3 14.3
Max. Current A 7.1 11.5 13.1 17 22.5 26.5 32
Max. Drying Temperature °C 80 80 80 80 80 80 80
Ambient Temperature Range °C 0-43 0-43 0-43 0-43 0-43 0-43 0-43
Protection Class Class Class I Class I Class I Class I Class I Class I Class I
Max. Exhaust Pressure MPa ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0 ≤3.0
Noise Level dB(A) ≤50 ≤55 ≤55 ≤55 ≤60 ≤60 ≤60
Net Weight kg 180 180 285 285 380 500 500
Overall Dimensions (L×W×H) mm 900×700×1263 900×700×1263 900×700×1463 900×700×1463 2100×1256×1590 2100×1256×1590 2100×1256×1590
Built-in Dimensions (L×W×H) mm 900×700×1263 900×700×1263 900×700×1463 900×700×1463 1170×1256×1590 1170×1256×1590 1170×1256×1590
